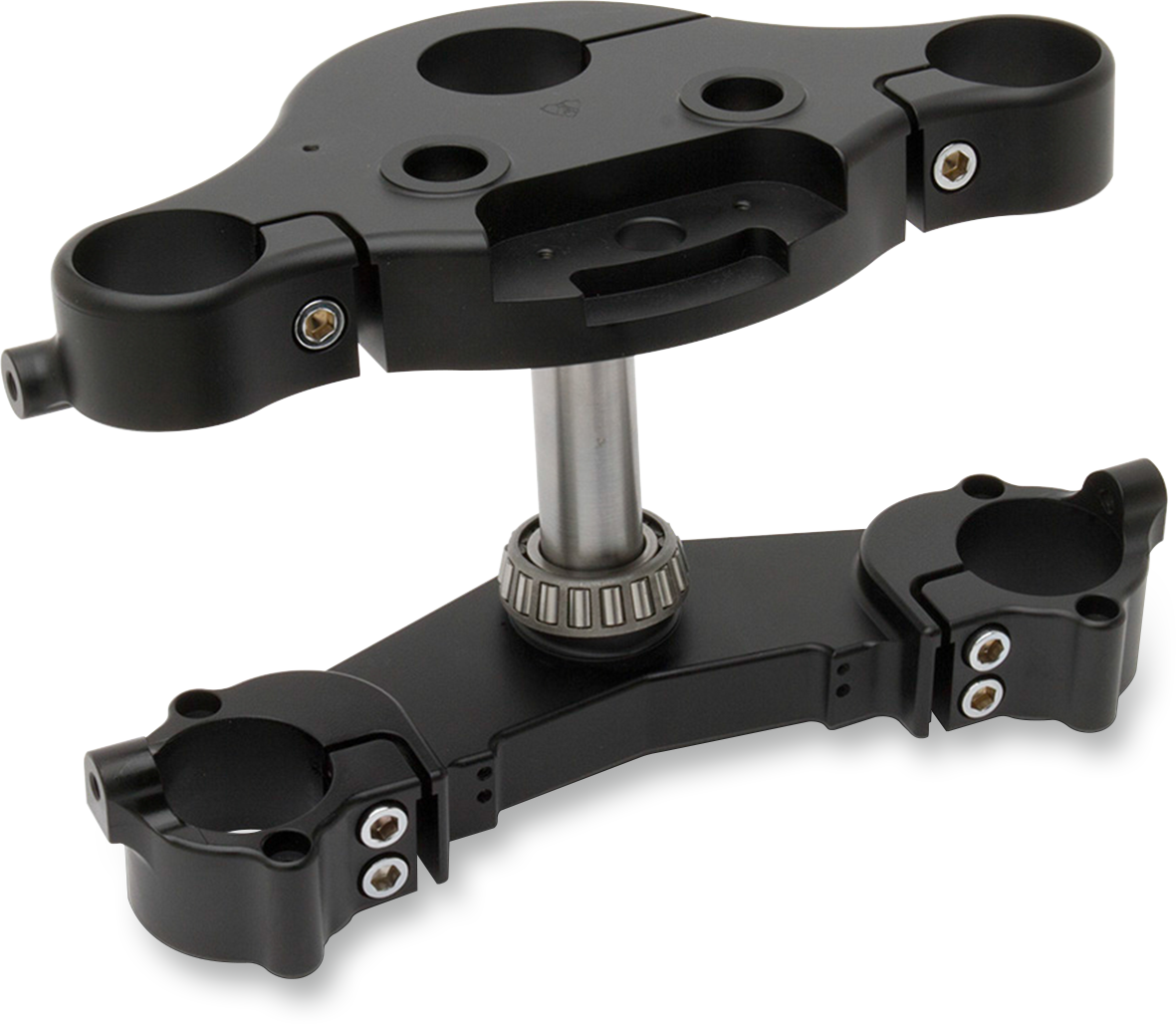

7 & 7 Raked Triple Tree

Description

• Triple trees offer 7″ of rake while maintaining 7″ of trail when using a 23″ wheel for the ultimate in handling, no frame modifications necessary
• Designed to work with 23″ and 21″ wheels only (stock diameter wheels will not handle correctly)
• 21″ wheels provide 6-1/8″ of trail
• Triple Trees are machined from forged 6061-T6 billet aluminum and then finished in black anodize
• Each kit includes top and bottom tree, pressed in steel stem, lower fork bearing and travel limiters on ’14-’16 applications
• Batwing style Fairings maintain stock position and do not require angled headlight wedges or special brackets to properly adjust headlights
• Will not work with factory diameter wheels.
• The larger the wheel, the less fork travel. Always check lower tree to fender clearance. For ’14- ’16 kits, Arlen Ness had added travel limiters.
• Raked triple trees change the handling characteristics of the motorcycle. Use caution until familiar with the changes.
